Touch panel system, today’s de facto standard function, was first introduced by Osako.
Poder stands for Osako’s “technological innovation”.

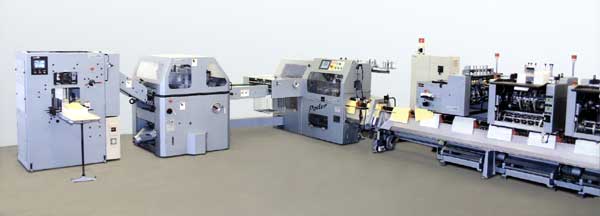

PODER

PODER

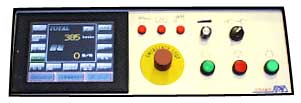

8" Touch Screen Control Monitor

'8

8" touch screen control monitor helps operators control
the book productions precisely by auto size setting,
signature scanner, wire monitor, misfeed control system, etc.

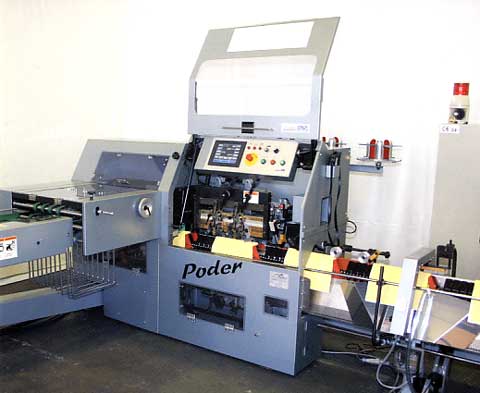

ORS-618B Saddle Stitcher

ORS-618B Saddle Stitcher Even as the standard, ORS-618B Saddle Stitcher is fully loaded with various inspection system.
This standard inspection system consists of auto size setting, wireless remote control, signature scanner, wire monitor, misfeed control, mechanical caliper, and digital caliper.
Double-check inspection is feasible by simultaneous use of mechanical caliper and digital caliper.
Signature detector (CCD camera) is also available as option.

OT-2000 3-Knife Trimmer

OT-2000 3-Knife Trimmer

By trimming the front side first, OT-2000 is suitable for the double production of 2-up books.
Versatile cutting for small to large books with center cut attachment.
Hole punch option is also available.

OT-327A 3-Knife Trimmer

OT-327A 3-Knife Trimmer

By refining "heavy duty" OT-327, OT-327A improves usability and ruggedness.
Even 20mm thick books are cut precisely and easily.
Optional center cut attachment.

OT-323B 3-Knife Trimmer

OT-323B 3-Knife Trimmer

By succeeding to the bestseller OT-323, the new OT-323B is renowned for versatility and accurate cutting.
Applicable to small through large book production.
Available center cut attachment and hole punch as option.

ORF-836 Rotary Feeder

ORF-836 Rotary Feeder

With two grippers in the main drum, ORF-836 yields stable production at high speed.
The entire air-related application is controllable in front.
Changeable vacuum timing while running the machine.
Tilt-back style saves extra station for manual feeding.
Both normal and reverse laps lead to stable paper gathering.

ORF-826 Rotary Feeder

ORF-826 Rotary Feeder

Advantageous combination of ORF-836 and OSAKO's bestseller ORF-821.
Easy and quick setup is ideal for short- to long-run production.
To name a few convenient features, adjustable vacuum timing, synchro start & stop, signature detector, automated gripper release and backstop.


ORC-310 Folder Feeder

ORC-310 Folder Feeder

With its unique folding mechanism by tension, ORC-310 ensures outstanding result similar to output obtained by a folding machine.
The cover is accurately registered and folded by OSAKO's Folder Feeder, compared to other competitive folder feeders which applies less accurate mechanism by the belt rotation.
Flexible in creasing regardless of paper's quality/direction.

OCS-203T Cross Stacker

OCS-203T Cross Stacker

OCS-203T is a refined model of OCS-203 with emphasis of 5" color touch monitor for accurate counts and tidy stack.
Option available for turntable with air-blow function to prevent damage to the bottom book.





Standard Features

Signature Scanner

Wire Monitor

Central Grease System

Signature Scanner

Wire Monitor

Central Grease
System


Wireless Remote Control

Digital Caliper

Misfeed System
Wireless Remote Control

Digital Caliper

Misfeed System





Options

Signature Detector iCCD Cameraj

Dust Collector

Signature Detector
(CCD Camera)

Dust Collector



Specifications

PODER-S PODER-L PODER
3-Knife Trimmer OT323B OT2000 OT327A
Max Trim Size (Front x Side) mm 300 x 470 300 x 480
Min. Trim Size (Front x Side) mm 85 x 148 75 x 110 96 x 148
Max. Trim Thickness mm 14 10 20
Max Center Cut Size mm 300 x 470/2 300 x 480/2
Min. Center Cut Size mm 85 x 257/2 75 x 180/2 96 x 257/2
Cutting Gap mm 0.4 - 18 0.4 - 16 0.4 - 18
Center Cut Thickness mm 6
Main Motor7.5kw 7.5kw (Up to 10 Feeders) 11kw (For 11-15 Feeders)
Trimmer Jam Inspection
Center Cut Attachment
2 Hole Punching Device
Single Hole Punching Device (Front)
Dust Collector
Rotary Feeder ORF-826 ORF-836
Max Auto Feed mm 320 x 480
Min. Auto Feed mm 95 x 100 *1 110 x 105 *2
Misfeed Control *3
Fluorescent Light
Signature Detector (CCD Camera)
Saddle Stitcher ORS-618B
8" Touch Screen Control Monitor
Size Auto Set
Wire Monitor
Auto Set Signature Scanner
Digital Caliper
Central Grease System
Wireless Remote Control
Max. Mechanical Speed 12000 C/H 13000 C/H
Standard Option
*1: When small books are mounted: 75 x 100mm
*2: When optional stopper for small books are mounted: 75 x 105mm
For reverse lap: 85 x 105mm
For sucker opening: 80 x 105mm
*3: Misfeed control includes synchro start & stop and nonfeed eject system

Stitching Heads

S80AS S80A S80B S50 S45 S80R *4
Max. Thickness mm 7 5 3 3
Crown Width mm 13 15 13 11 13
Stitching Distance mm 80 58 45 80
Max. Stitching Heads 4 6 8 4
3 stitching heads included as standard parts.
*4: Loop stitching heads
